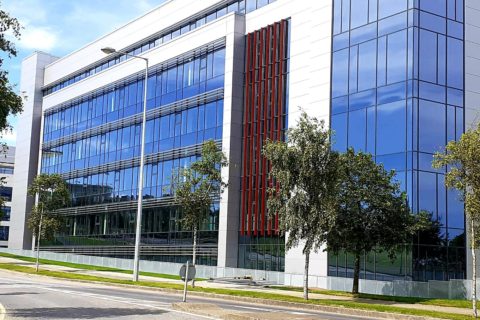

|Curtain Walling||Typically designed with extruded aluminium vertical and horizontal members which can be calculated to span multiple floors. The frame is usually in-filled with glass (of which there is a wide variety of choice) which provides an architecturally pleasing result. Other common in-fills include metal panels, louvres, and operable windows or vents. This is a cost effective solution for a commercial or industrial project where large areas of glazing are required.|
|SG Curtain Walling||With a similar support framework to standard curtain walling the glass is either structurally bonded to aluminium sub-frames/cassettes or held with concealed toggles both giving a flush frameless exterior surface. The joints between the glass are either silicone sealed or in some cases sealed with a flipper gasket to give a shadow joint.|
A façade where glass is held by means of special stainless steel mechanical bolts & spider brackets and a discreet stainless steel perimeter channel. Clean lines and maximised use of light are the main benefits of this system. Wind load support is provided by the steel structure or alternatively by toughened glass fins or even a pre-tensioned cable truss.
Door canopies can also be made from this system to provide light modern look.
Usually manufactured using a standard curtain walling system rooflights can be equipped with opening lights, which can be controlled manually (handles or manual winders) or automatically (linked to the fire alarm system or a wall mounted switch). As for standard curtain walling, a wide variety of glass types can be used to satisfy the solar gain or heat loss requirements.
Either extruded aluminium or bespoke stainless steel framing, with glass-to-glass joints a possibility. Toughened glass support fins are also an option where large glass sizes are involved.
|Windows||We can supply the full range of thermally broken window types, manufactured from industry recognised systems such as APA, APS, Reynaers, Technal or Kawneer. These windows can be integrated into curtain walling or Kingspan cladding as required and can be designed to meet or surpass the requirements of Document L. We can also supply certified fire-rated steel or aluminium windows if required.|
|Doors||A wide variety of door types can be supplied: standard aluminium single or double leaf hinged doors, multi-leaf manual sliding doors, automatic bi-parting or folding entrance doors, manual or automatic revolving doors. We can also supply certified fire-rated steel or aluminium doors if required. The majority of these door types can be integrated into any of the glazing systems mentioned above.|
Mainly horizontal, but often vertical, sun shading commonly used to prevent façades with large amounts of glass from overheating during the summer or to reduce the glare form low lying winter sun.
Whether for purely aesthetic or functional purposes louvre panels can be manufactured from a wide variety of profiles which can be integrated into a curtain wall screen, rooflight or window. Passive, manual or automatic operation are also an option.
|Painted uPVC||For a cost effective alternative to thermally broken aluminium, painted uPVC is the perfect choice combining high thermal values with the flexibility of the full RAL colour range. Now uPVC windows can be combined with aluminium curtain walling in the same development as the same colour finish can be achieved on both systems.|
The Aluprof MB-70 is a high performance and fully integrated window and door system. Due to the specially designed polyamide break and extruded plastic gaskets that are incorporated into the aluminium profile, it offers excellent thermal performance with the Uf rate from 1.0 W/m²K and reduced noise properties.
The range perfectly suits Aluprof's curtain walling and framing products and is appropriate for installation in low and high rise buildings, new buildings and refurbishment projects.
|MB-70 Pack||Legend Profiles||A-rated Legend Door Option||Multi Chambered Profiles||Triple Glazing Bead|
